Product Description

Suitable for welding fume, cutting fume dust, laser welding cutting fume, plasma cutting fume, polishing dust, drilling dust, mixing and cutting materials to produce.


Performance Description
1- Integral structure with Fuma wheel at the bottom, flexible movement and fixing.
2- Anti-suction device to make the effect of ash cleaning more thorough.
3- Power supply condition monitoring: alarm of fault phase overvoltage and undervoltage to prevent motor and electrical components from damage.
4- Pressure condition monitoring: alarm for low pressure of gas source to prevent incomplete dust cleaning.
5- Pressure differential gauge shows the working state of filter element intuitively, and automatic pulse back blowing with excessive pressure difference.
6- Operation temperature monitoring: alarm system temperature is too high to prevent fire.

Standard Configuation
1- Filteration efficiency (>99.9%) of main filter core (imported film covered polyester fiber)
2- Fault phase protection, overload protection, air pressure monitoring devices
3- PLC intelligent control system
4- Tricolor lamp
5- Differential pressure gauge
6- Observation window
7- 60L dust collection drawer
8- Left and rear three-sided air intake (dia.300-200)
9- 10m power cord
10- Spark trap (large particle dust pre-filter)

Spare Parts
1- Frequency conversion system
2- IO port (remoto control)
3- Explosion proof configuration
4- Universal flexible arm (dia.200)
5- Suction duct (dia.400)
6- Ash bucket

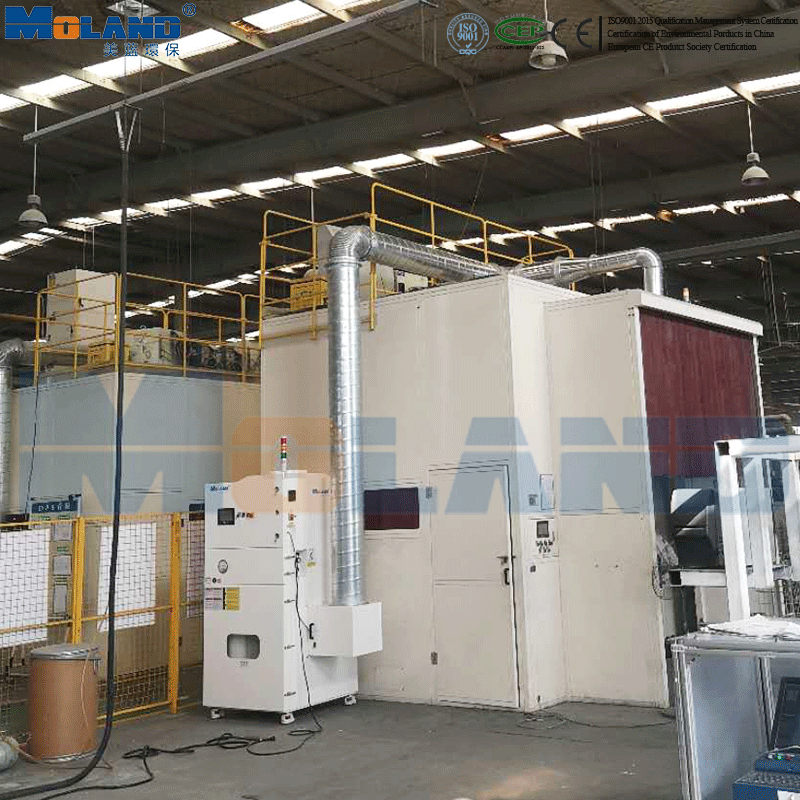

Recommended Working Condition
Welding workstation (3m*2.5m*4m)
Special machine for ring and straight welding
Large continous workload conditions, such as intersection wire cutting

Payment Terms︰ T/T

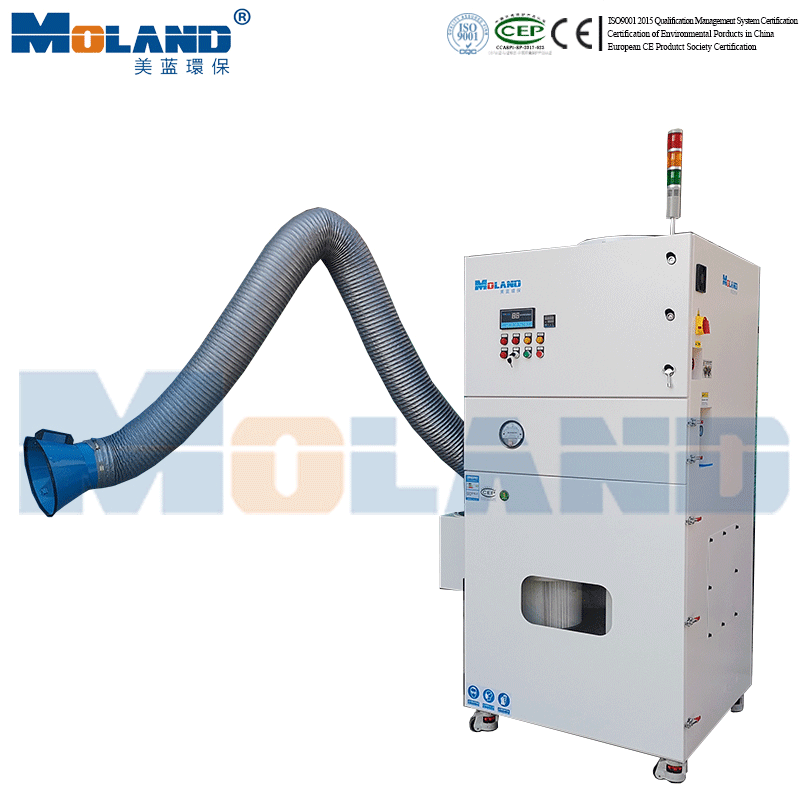

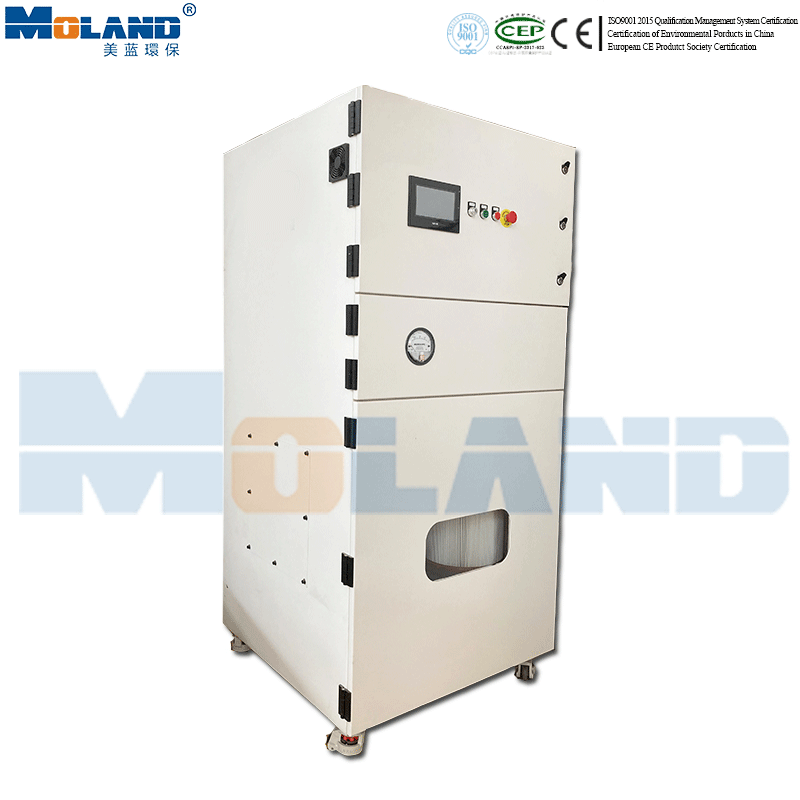

Product Image
