Portable Welding Fume Extractor Manual Welding Dust Collector

Portable Welding Fume Extractor Manual Welding Dust Collector

Model No.︰MLWF200

Brand Name︰Moland

Country of Origin︰China

Unit Price︰US $ 462 / pc

Minimum Order︰1 pc

Inquire Now

Product Description

Suitable for all kinds of welding (arc welding, secondary welding, MAG welding, gas melting cutting, special welding, etc.), polishing, cutting, grinding and other places to produce smoke and dust.


Performance Description

The smoke and dust purifier has passed the prodcut certification of CCEP China Environmental Productection Industry Association, and the filteration efficiency is more than 99.9%.
To meet the requirements of W3 (high alloy steel) welding fume safety filtering, it meets the requirements of the special rules in the national regulations on the supervision of hazardous substances, and can even realize indoor air circulation if it is used correctly.

Standard Configuation
1- Filteration efficiency (>99.9%) of main filter core (covered polyester fiber)
2- 2m/3m Universal Flexible Inhalation Arm
3- Fault phase protection and overload protection
4- Quick-disassembly filter chuck
5- 5m power cord
6- Spark trap (large particle dust pre-filter)
7- Activated carbon filter (for adsorbing toxic gases)

  MLWF120 MLWF200 Spare Parts List
Motor Power 1.1KW  1.5KW Name Number
Working Voltage 220V  50Hz 380V    50Hz Main Filter Element
dia.325*400mm
L*3240
Air  Volume 1500m^3/h 2500m^3/h
Filtering Accuracy 0.3um Suction Arm
dia.160*2000mm
XQB1620
Filter Material Domestic Membrane-coated Filter Element
Filter Area 8m^2 Suction Arm
dia.160*3000mm
XQB1630
Cleaning Mode Manual
Noise Level 65dBA Activated Carbon Filter HXT120
Size 550*550*1050mm
Weight 90kg

Payment Terms︰ T/T

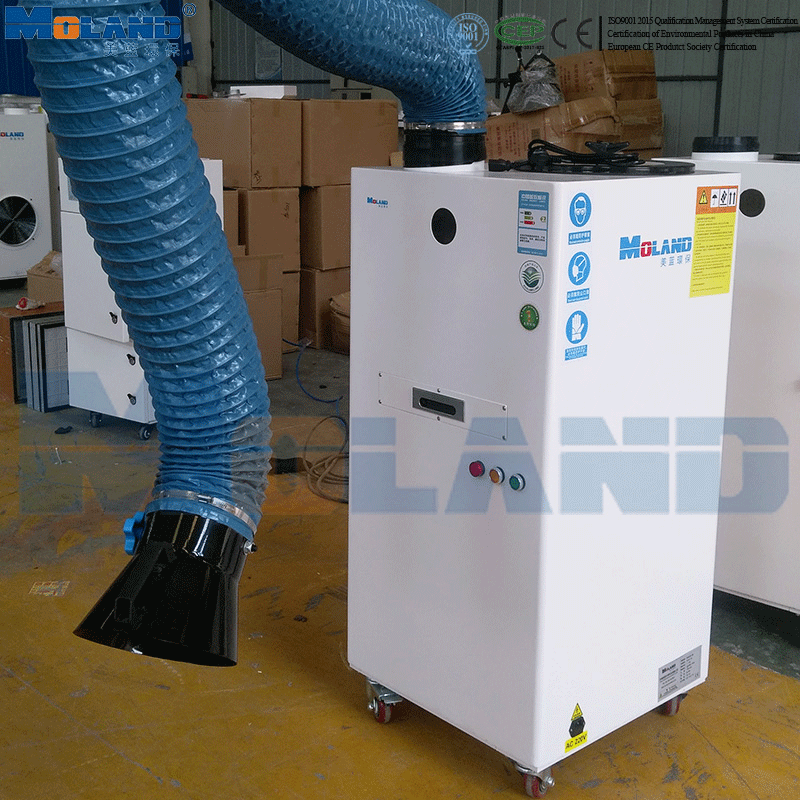

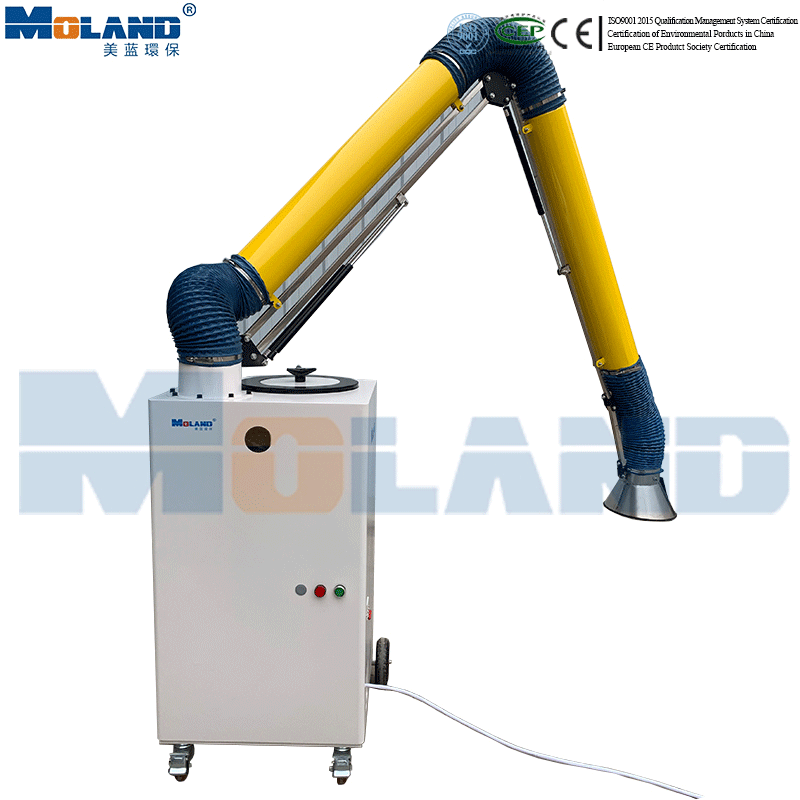

Product Image
